Vista Monitoring IP Multiviewer

Dense multi-CODEC visualization on a single Canvas

Ideal for field Contribution and Studio Workflows

Exceptionally Economical SaaS OpEx Model

Vista Monitoring IP Multiviewer is an application designed for broadcast Contribution and Distribution monitoring of multiple compressed transport stream flows on a single Canvas. Vista utilizes standard compute with high performance networking and efficient dense software decoding. Vista ingests transport flows via UDP, RTP and SRT with OTT flows coming soon. Video CODEC support includes JXS, HEVC, AVC and MPEG 2. Each flow is decoded, scaled and positioned in it's unique Region on the UHD multi-Region Canvas. In addition to the UHD HDMI output, the UHD Canvas is efficiently HEVC or AVC encoded at full frame size and frame rate for streaming the Canvas with audio for remote or local viewing. Vista decodes compressed audio with support for raw SMPTE 302M PCM audio flows too. Vista displays accurate dBFS bars for each region. Audio capacity includes 16 audio channels per Region with user routing and control for pair monitoring via the local HDMI interface and the encoded transport stream of the Canvas.

Density - Efficiency - Flexibility - Reliability

Vista was designed for density, efficiency, flexibility, and reliability on the TxRx Data portable MS-A2 Kit  or on the standard compute platform of your choosing. Vista is the next generation Monitoring IP Multiviewer for Tier One compressed Contribution and Distribution monitoring and analytics.

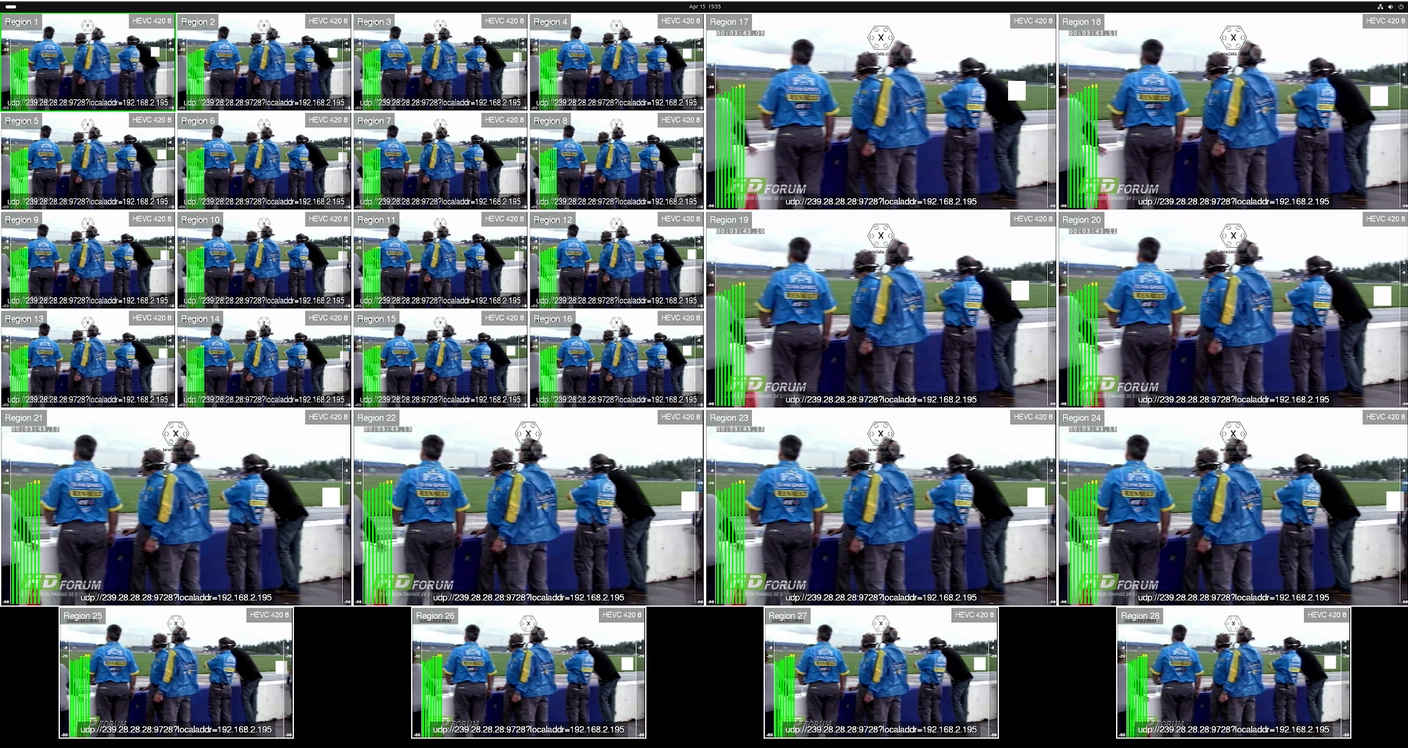

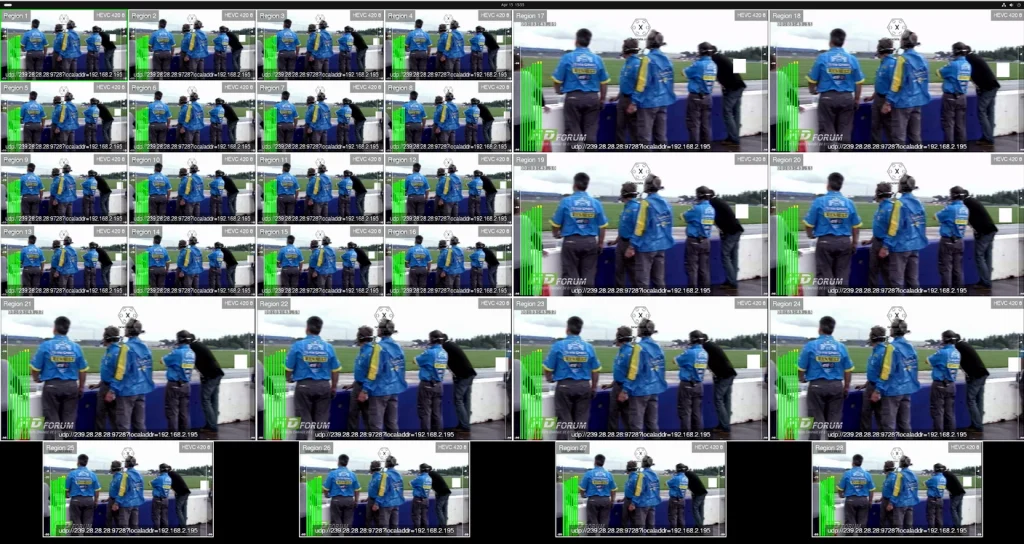

28 Region HEVC 420 10 bit
Vista 28-Region HEVC 420 10 bit

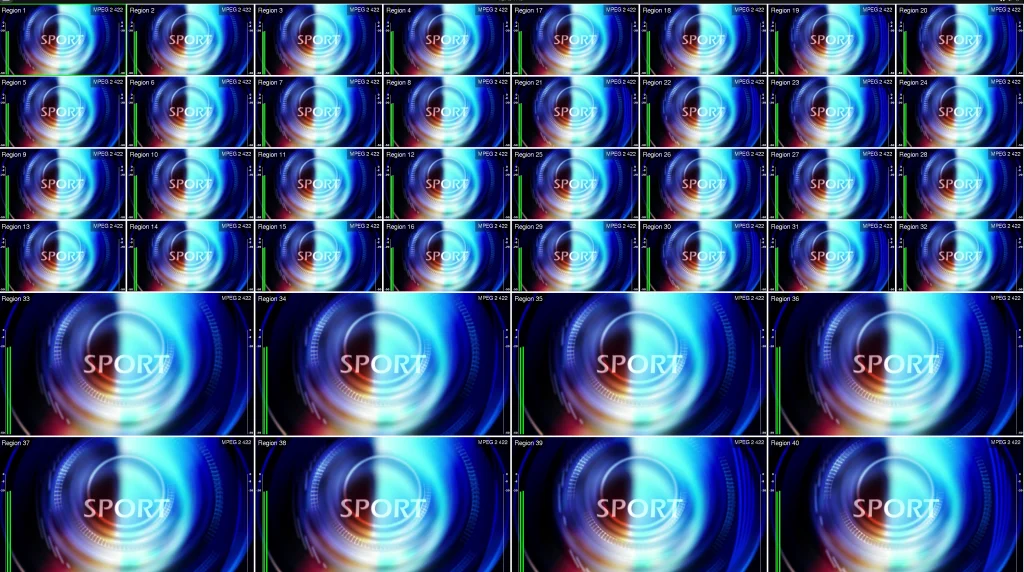

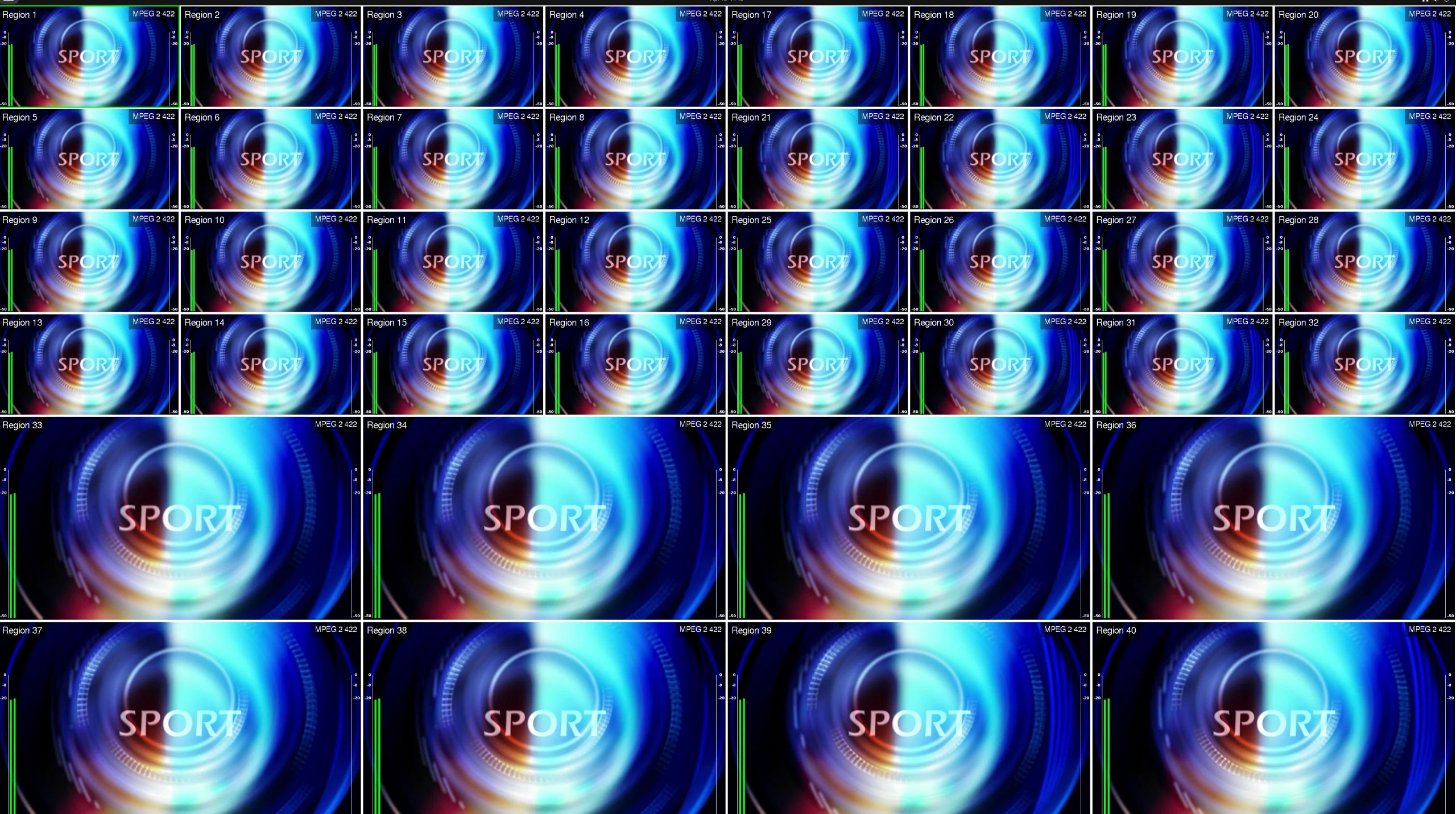

40 Region MPEG 2 422
Vista 40-Region MPEG 2 422

Vista Highlights

  • Next generation Monitoring IP MultiView
  • Operates on standard Intel and AMD processors
  • Multi-CODEC video decode - JXS, HEVC, AVC and MP2
  • Concurrent multi-CODEC video decode per Region
  • 422 10-bit and 420 8-bit video decode per Region
  • Ultra low latency 2 frame decode
  • Multi CODEC audio - AAC, MP2, Dolby, PCM
  • 16 channel audio with dBFS meters per Region
  • Operator defined audio channel routing per Region
  • Broadcast quality lip sync with millisecond adjustment
  • Configure UDP, RTP and SRT flow per Region
  • OTT flow support for HLS, DASH, WebRTC and RTSP roadmap
  • Single Program Transport Stream (SPTS)
  • Multiple Program Transport Stream (MPTS)
  • BISS1, BISSE decryption for IRD replacement workflows
  • Transport Stream and CODEC analysis
  • 16-channel PCM, AAC and MPEG audio per Region
  • Concurrent multi-CODEC audio decode per Region
  • UHD Canvas with user defined frame rate and background color
  • NVIDIA GPU accelerated HEVC/AVC Ultra-low latency encode
  • Full frame size and frame rate encode
  • Frame size down convert encode option
  • Multiple route streaming reduces Gateway requirement
  • Canvas layout using drag and drop for location and Region size
  • No manual X,Y location or H,V size manual entry
  • Alarms on loss of TS flow, still frame, audio level, metadata and SCTE
  • HTML WebUI with REST API​

Alarms - Logging

  • Vista provides alarms with visual Region borders including hold last frame, full Region color raster, user defined alarm text overlays, loss of TS Flow, Video Freeze Frame, Audio Level plus SCTE and system flow logging - with more to come!

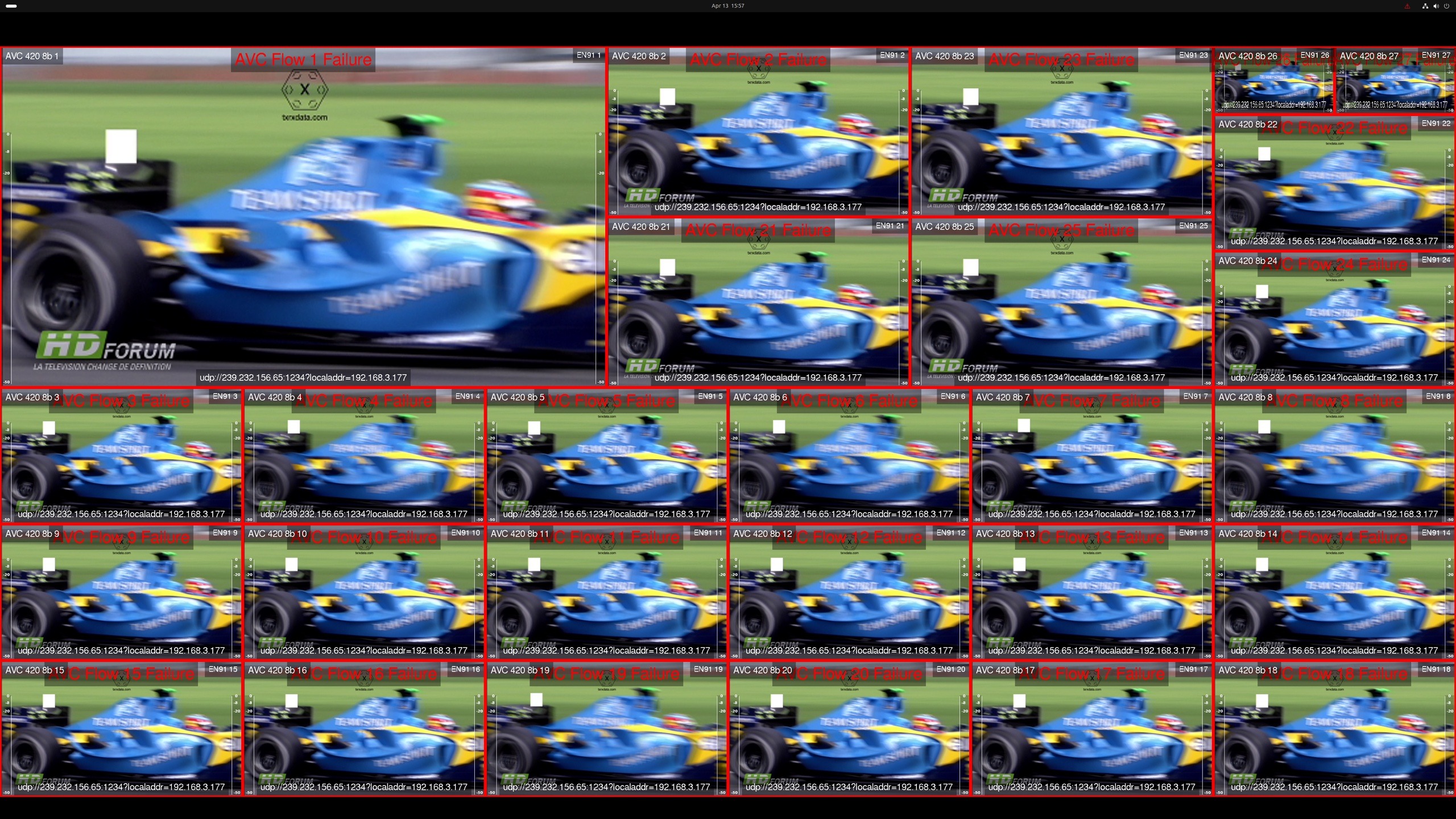

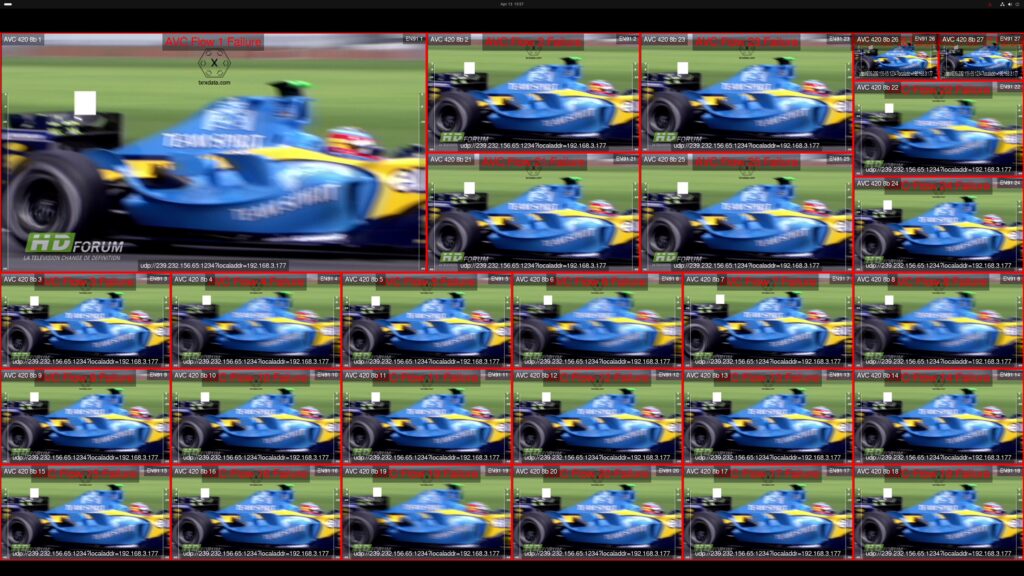

Vista flow failure
Vista flow failure with red border and text alarms

Monitor "Solo" Region View

  • With a single click - enable one pixel to pixel Monitor Region on the Canvas - click again to return to multi-Region on Canvas view

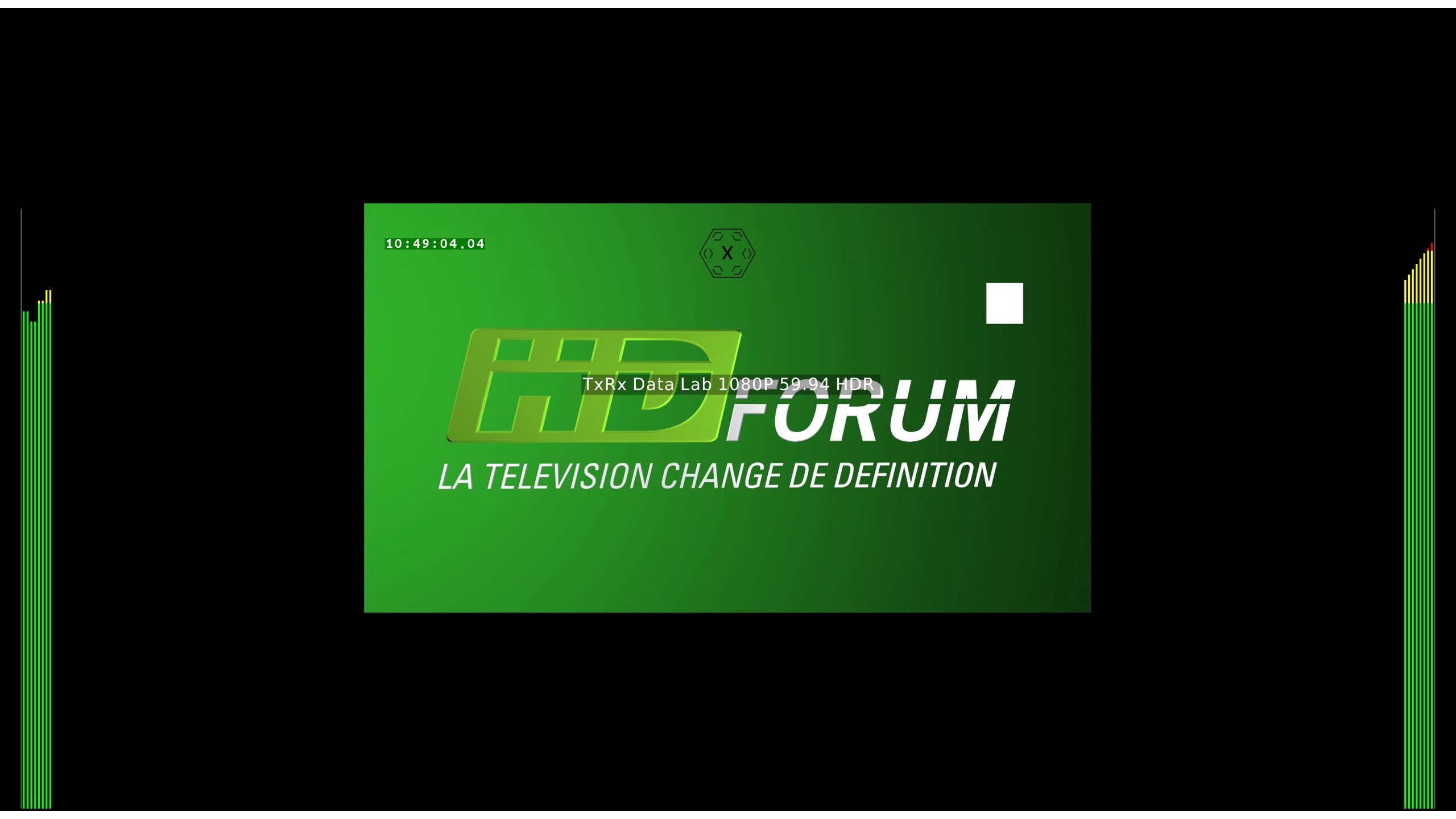

Vista monitor mode
Vista monitor mode - easy on/off

Complex CODEC Density

  • Vista supports complex CODEC density - supporting many complex HEVC 422 10 bit HDR and JPEG XS "JXS" flow decoding, scaling and location of many Regions on Canvas

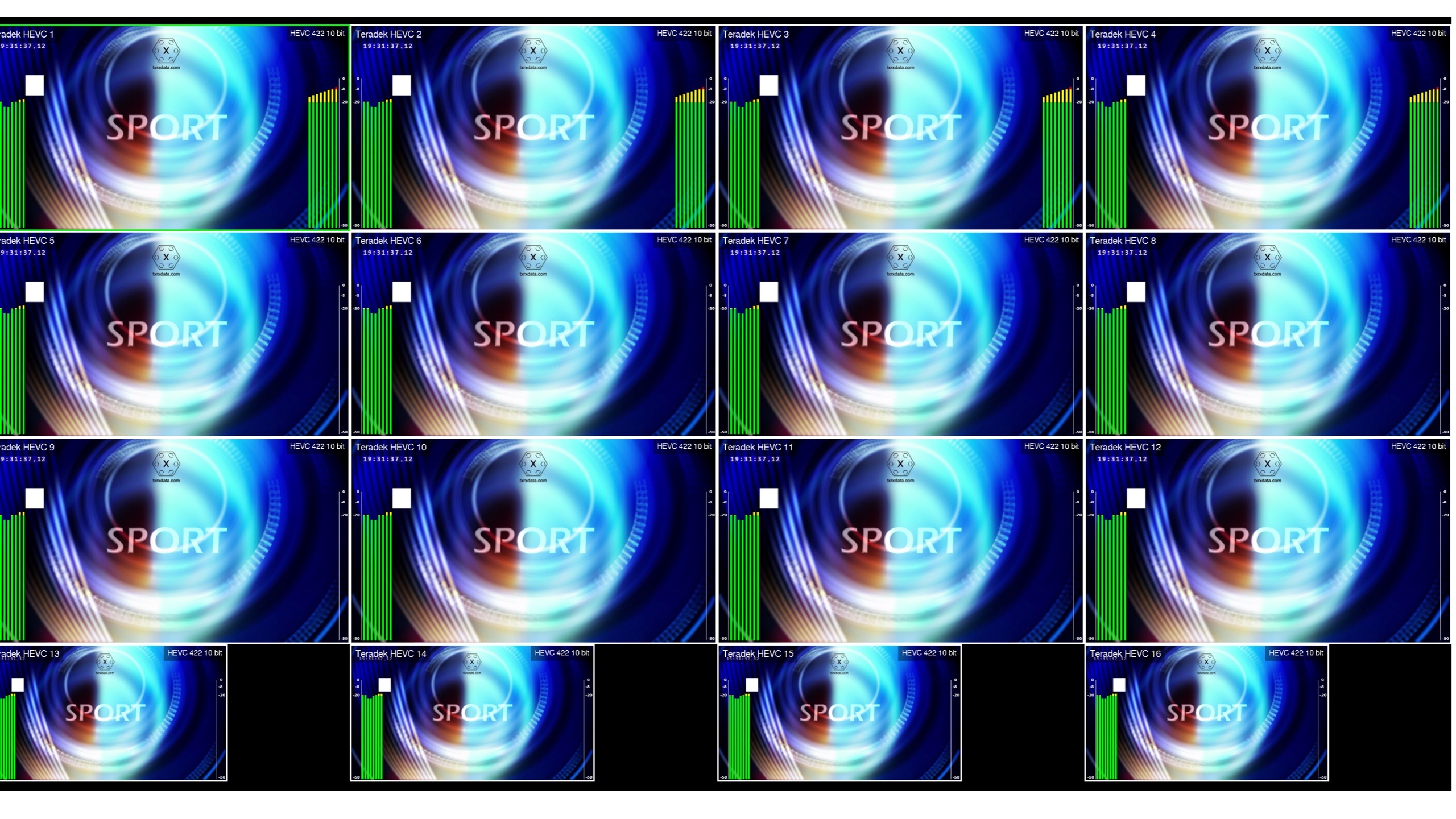

Vista HEVC 422
Vista 16-Region HEVC 422

Status with high Frame Rate Thumbnails and TS Analysis

  • Vista's Status tab provides high Frame Rate Thumbnails and deep transport analysis including TS details, Service Name and Provider, PIDS, CODECS, data rates, frame size, frame rate, SDR/HDR, audio details and more. Each Region has a built in TS analyzer with all active concurrently and readily accessible via the WebUI or REST API.

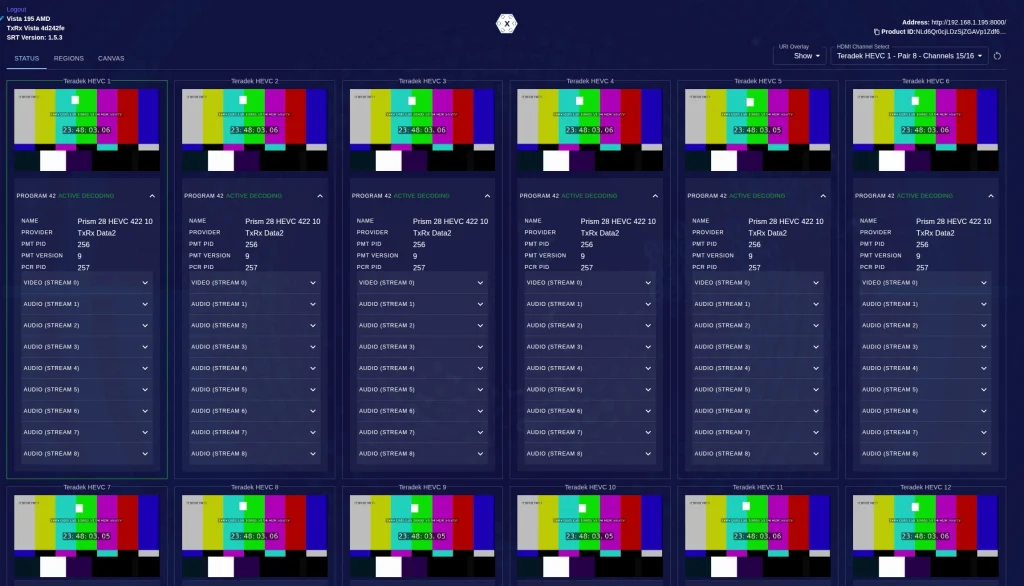

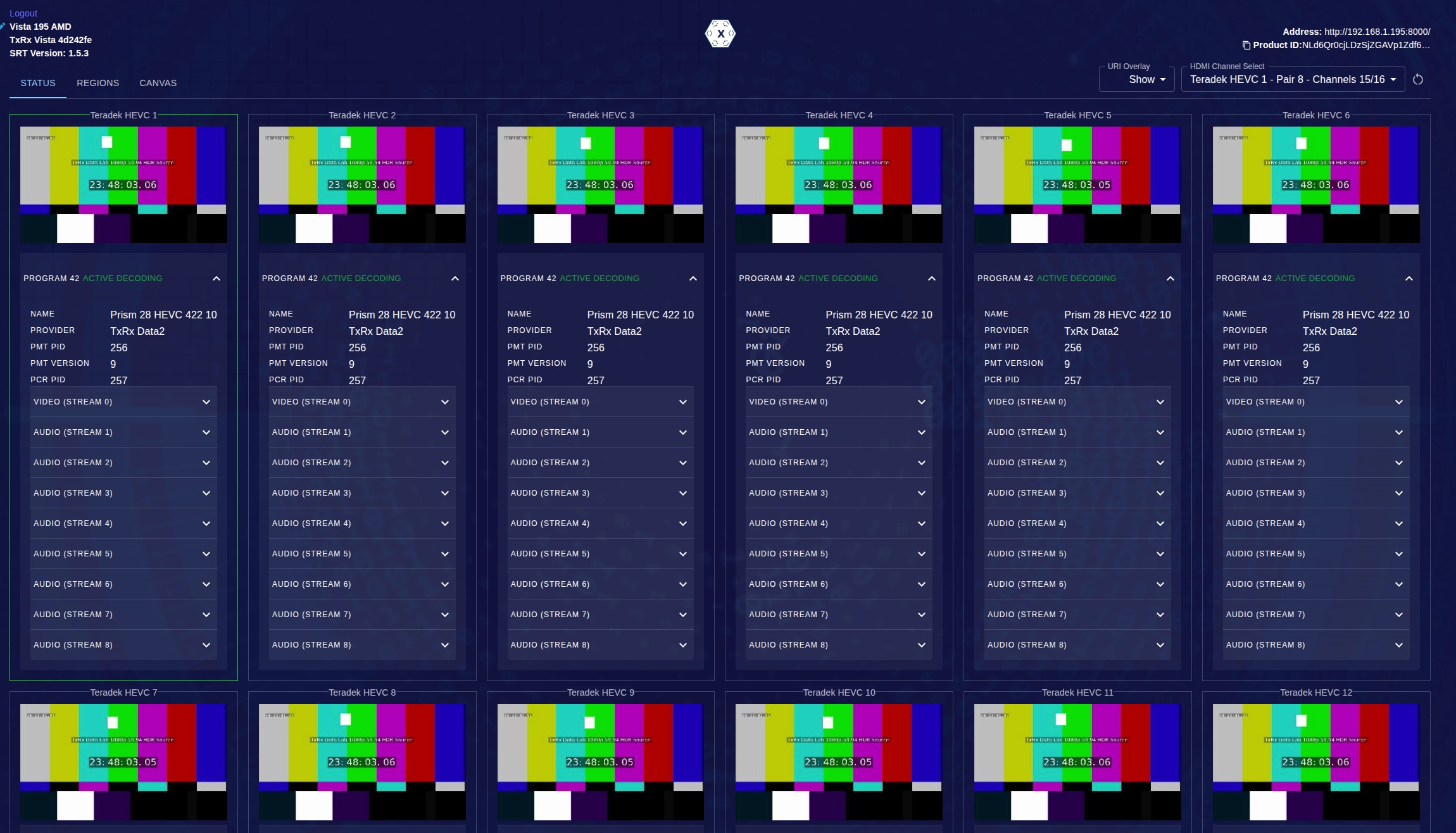

Vista UI Status with Transport Analysis
Vista UI Status with Transport Analysis

Vista is your economical dense multi-Region multi-CODEC IP Multiviewer for Contribution and Distribution workflows

  • Exceptionally Economical SaaS model with no CapEx investment
  • Optional for purchase MS-A2 Workstation and UHD-18 Monitor Kits
  • Updates and new releases are included - no added SLA costs
  • Built by a team of industry veterans offering excellent support, usability and value
  • Deploy on your platform - see COTS Hardware and OS Requirements

Optional MS-A2 Workstation Kit

  • MS-A2 Workstation
  • Linux 26.04 LTS pre-installed
  • NVIDIA 3050 GPU
  • AC>DC power supply (x2)
  • Main AC power cord (x2)
  • 2 Meter CAT 6 Ethernet Cabel (x2)
  • Wireless Keyboard and Mouse
  • Vista Application pre-installed
  • Form fit PelicanAir 1485 custom case

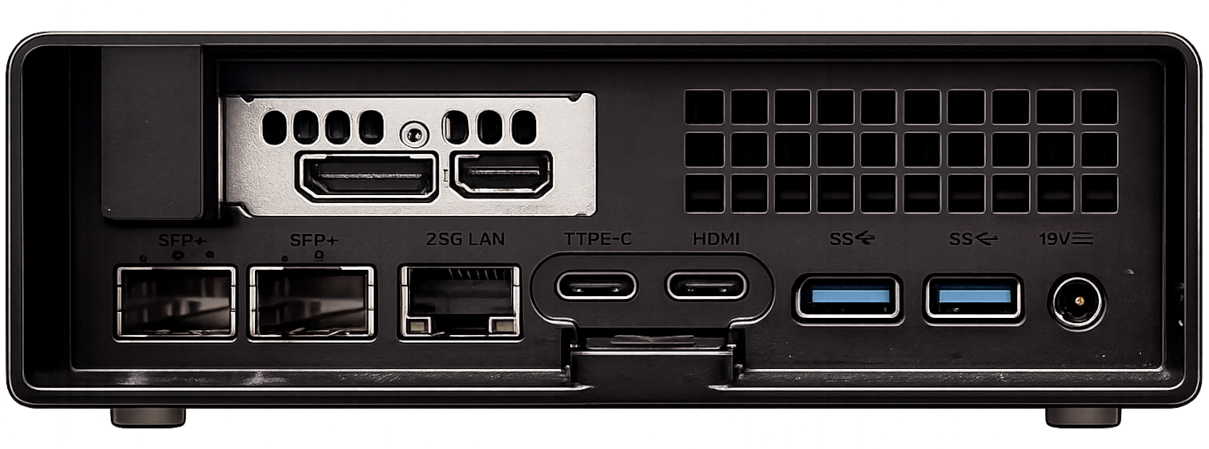

Minisforum MS-A2 Workstation rear with GPU
Minisforum MS-A2 Workstation rear with GPU

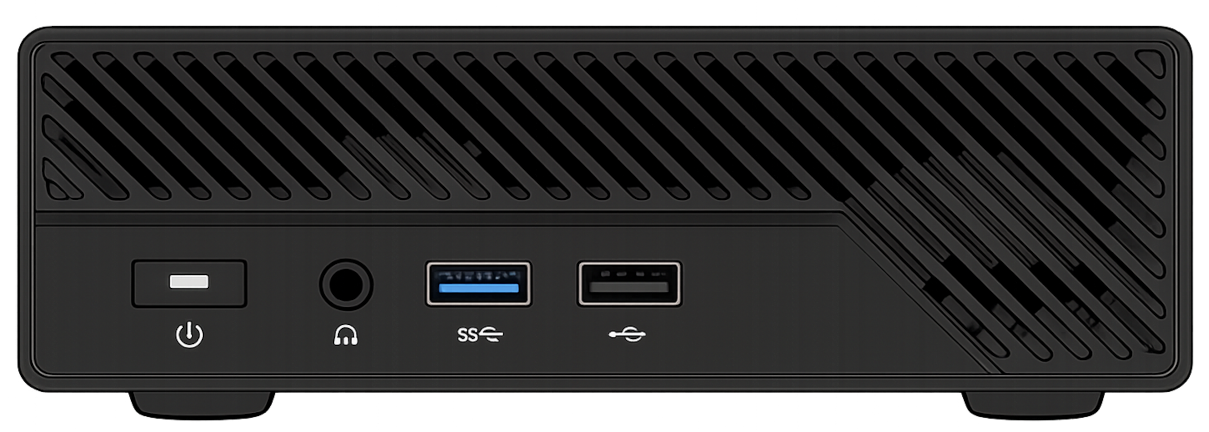

Minisforum MS-A2 Workstation Front
Minisforum MS-A2 Workstation Front

Optional UHD-18 Monitor Kit

  • Portable 18.4" UHD mini-HDMI/USBC Monitor
  • 2 Meter Thin-Flex HDMI to mini-HDMI Cable
  • 5 Meter Thin-Flex HDMI to mini-HDMI Cable
  • 3 Meter 10 Gigabit optical jumper Cable (x2)
  • 7 in 1 power strip with two AC outlets, 3 USB-C and 2 USB-A jacks
  • 1 Meter USB-C Cable
  • Form fit PelicanAir 1505 custom case

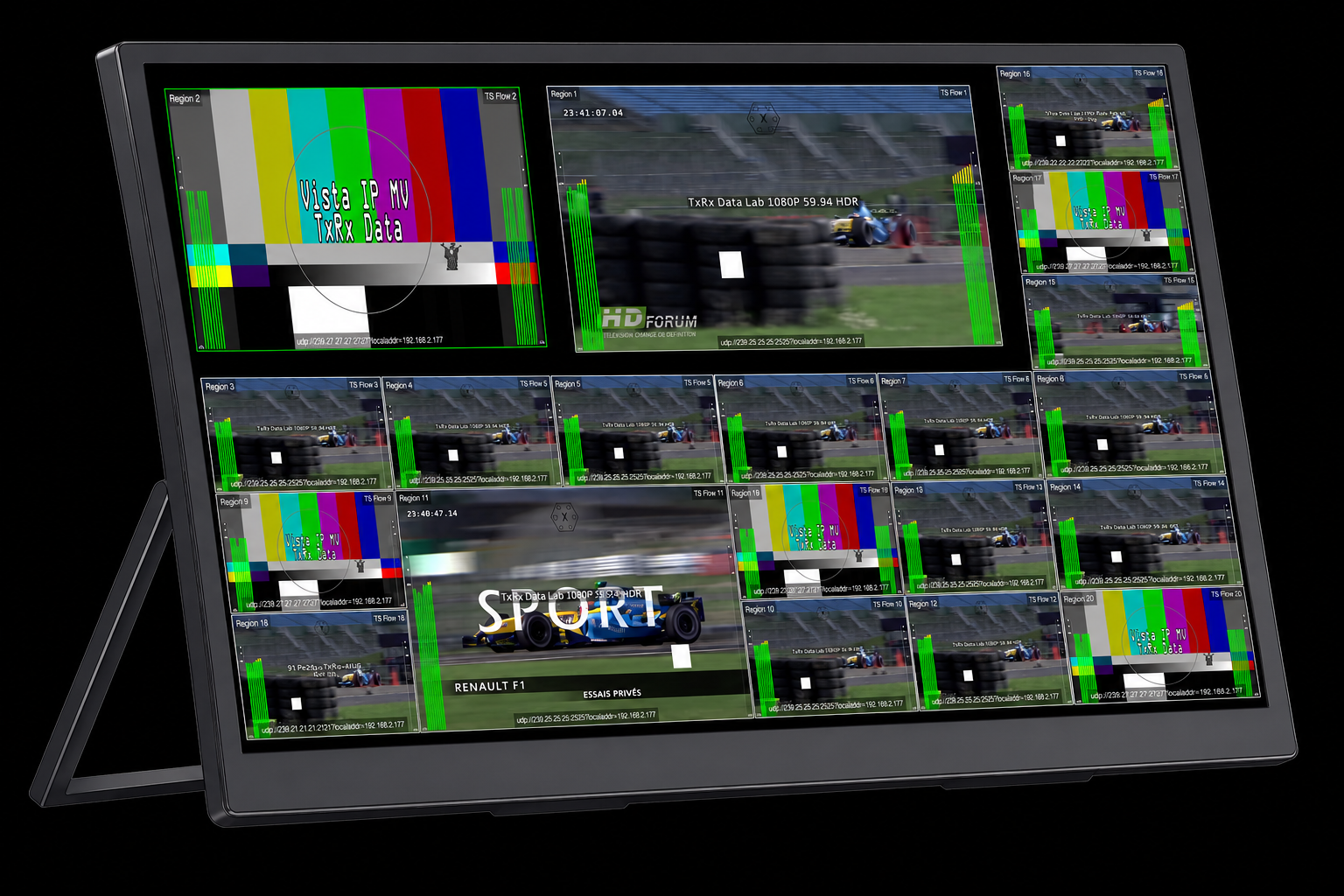

18.4" UHD Monitor showing Vista Canvas
18.4" UHD Monitor showing Vista Canvas

MS-A2 Kit Workstation Specifications

AMD Ryzen™ 9 9955HX,16C/32T

Dual 16 GB DDR5-5600Mhz -32GB

Dual 10Gbps SFP+ Ethernet

Dual 2.5G RJ45 Ethernet

WIFI 6E & BT 5.3

1 TB SSD

Ubuntu 26-04 LTS OS

USB-A 3.2 Gen 2 (x1)

USB-A 3.2 Gen 1 (x3)

USB-C (x2)

PCle x16 Slot with Nvidia 3050 GPU pre-installed

AC>DC 19V Power adaptor (x2)

AC power cable (x2)

Wireless Keyboard and Mouse

UHD-18 Monitor Specifications

UHD 18.4 inch HDMI/USB-C Monitor

3840×2160 UHD / 1920 x 1080 Full HD

400 NIT 3 ms Response

mini-HDMI and USBC inputs

USBC 5 VDC Power Input

Built-In Speakers with 3.5 mm Jack

Desk Mount Kick-Stand

VESA Mount 75×75 mm M4 Threads (x4)

COTS Hardware and OS Requirements

Multicore multi-thread Intel or AMD x86 CPU

32 GB DDR5

1 TB SSD

Nvidia 3050 GPU

Ubuntu 26.04 LTS

10 or 25 Gigabit Ethernet SFP

1 or 2.5 Gigabit Ethernet Copper

Table 1 Density on Vista-AP-2

Codec Chroma Bit Decode VQ Density Notes
JXS 422 10 bit 1080P Full 12 Full VQ
JXS 422 10 bit 1080P Half 24 Half the lines
JXS 422 10 bit 1080P Quarter 36 Quarter the lines
HEVC 422 10 bit 1080P Full 16 Full VQ
HEVC 420 10 bit 1080P Full 24 Full VQ
HEVC 420 8 bit 1080P Full 32 Full VQ
AVC 422 10 bit 1080p Full 24 Full VQ
AVC 420 10 bit 1080p Full 32 Full VQ
AVC 420 8 bit 1080p Full 40 Full VQ
MPEG 2 422 8 bit 1080i Full 40 Full VQ
MPEG 2 420 8 bit 1080i Full 50 Full VQ

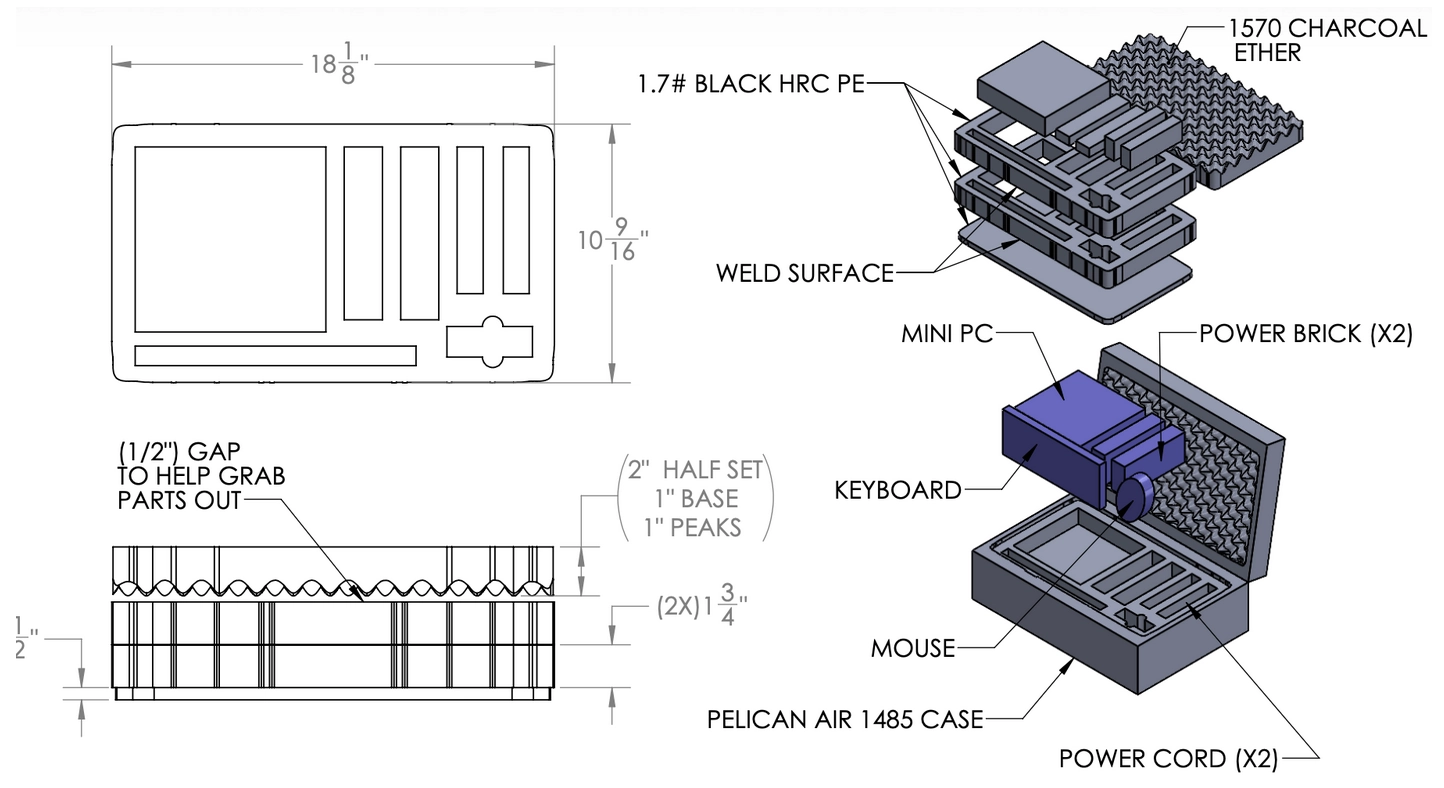

MSA2 COTS hardware in custom carry-on PelicanAir 1485 case

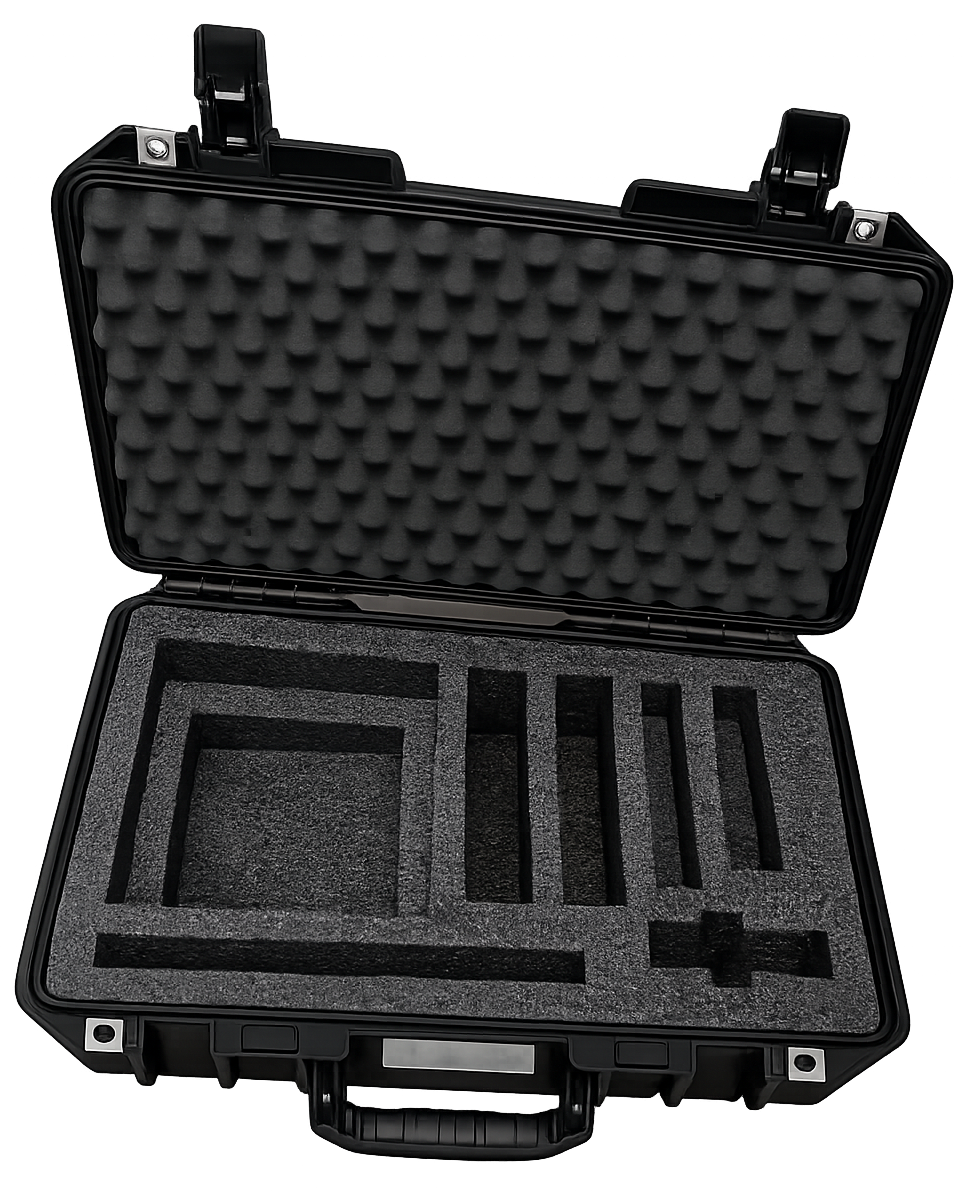

Pelican 1485 Case
Pelican 1485 Case
custom carry-on PelicanAir 1485 case
Vista MS-A2 1485 Workstation Case expanded

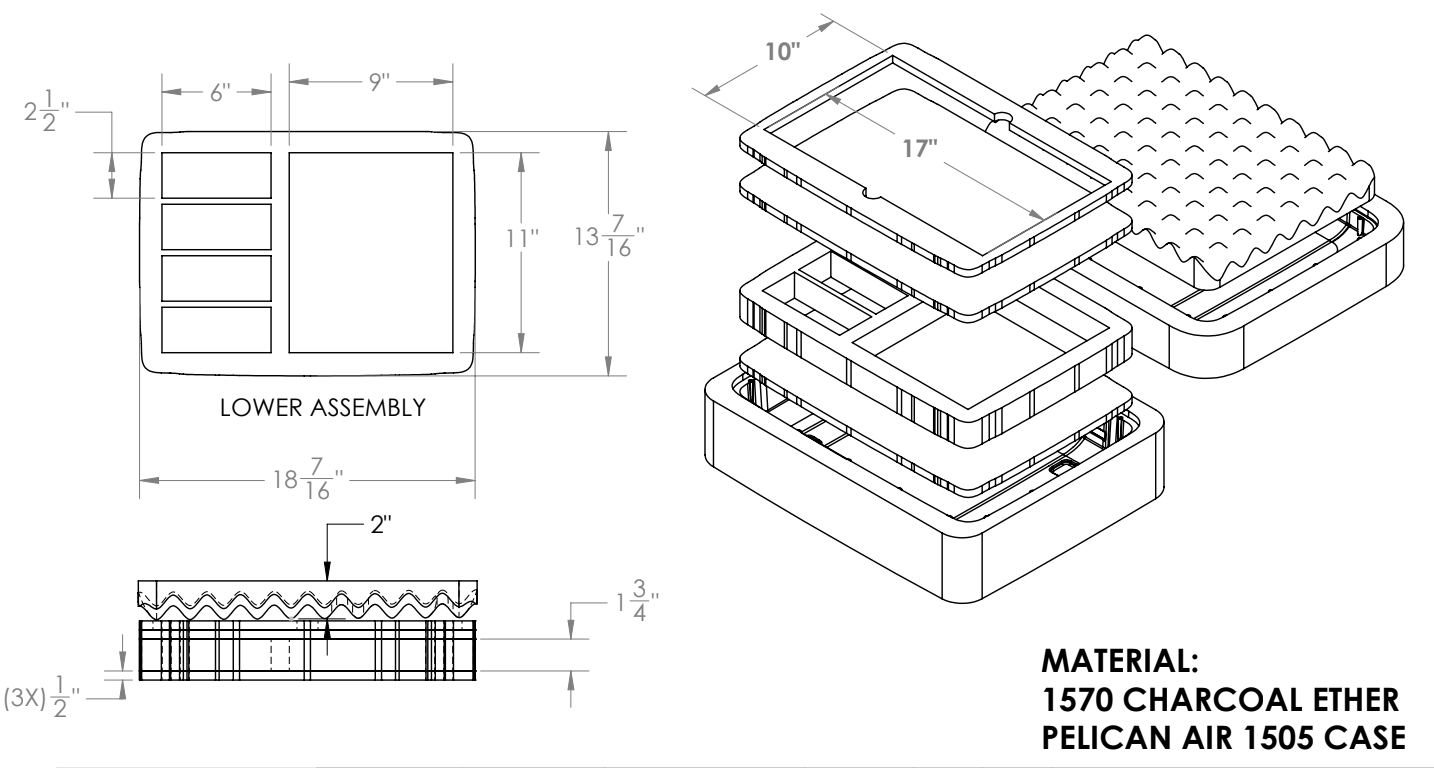

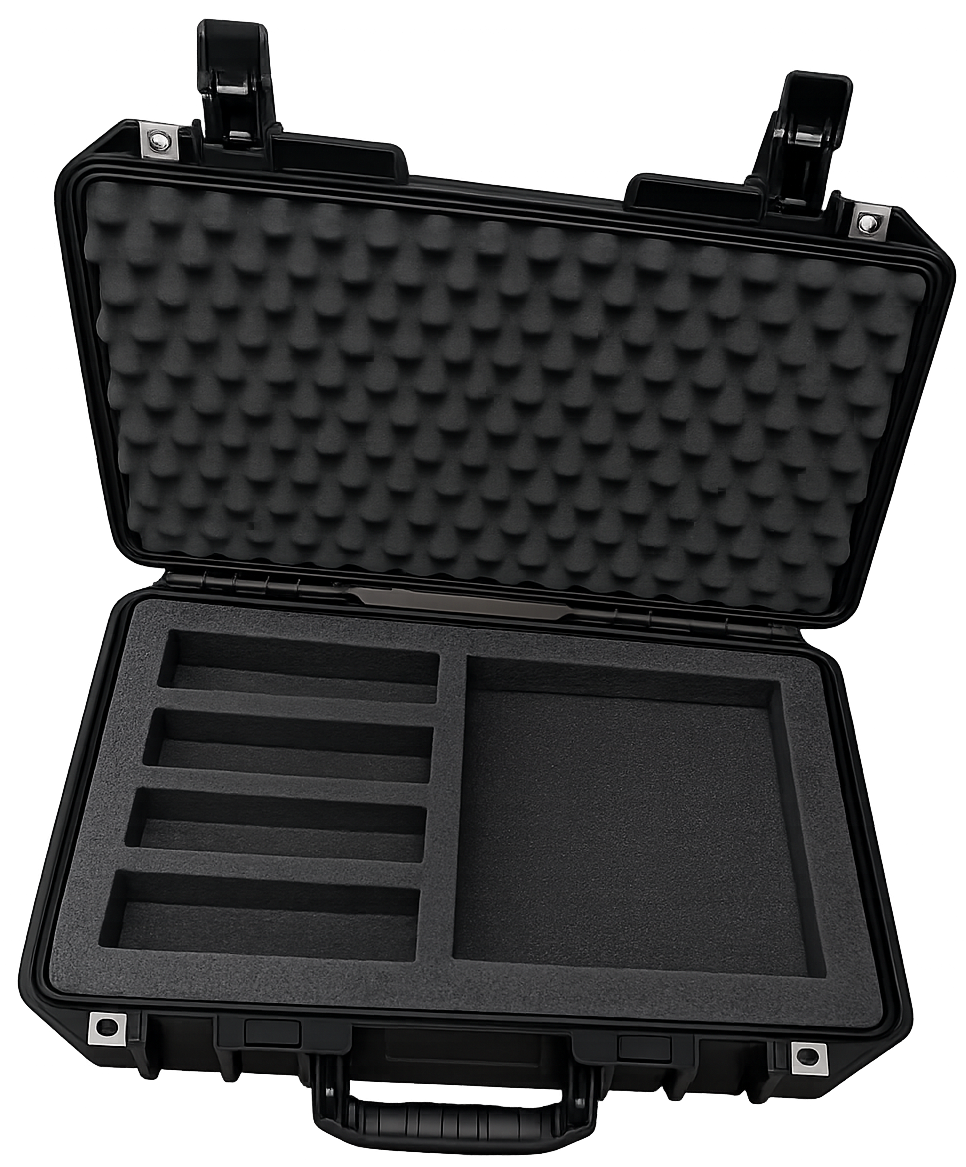

Vista-UHD-2 monitor kit in custom carry-on PelicanAir 1505 case

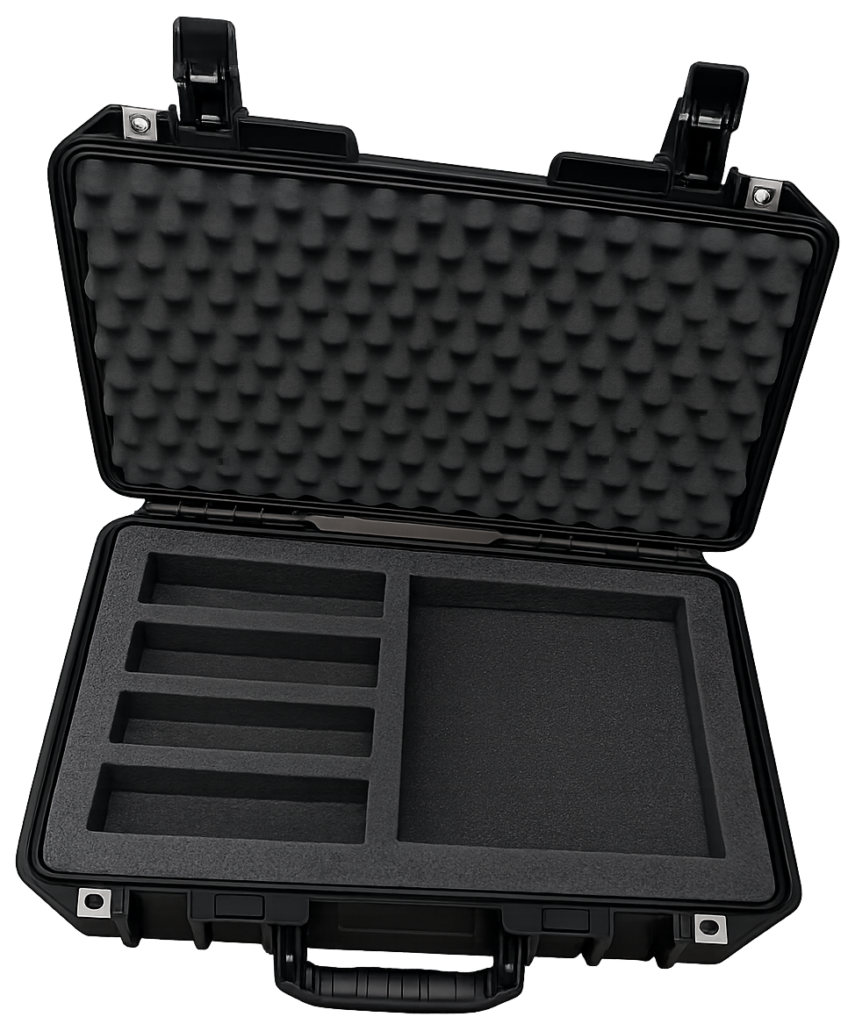

Pelican 1505 Case
Pelican 1505 Case
Vista UHD2 Monitor
Vista UHD-2 1505 Monitor Case expanded
